8' CHICAGO POWERED LEAF BRAKE **8'X3/16"**
PRESS BRAKES, MECHANICAL

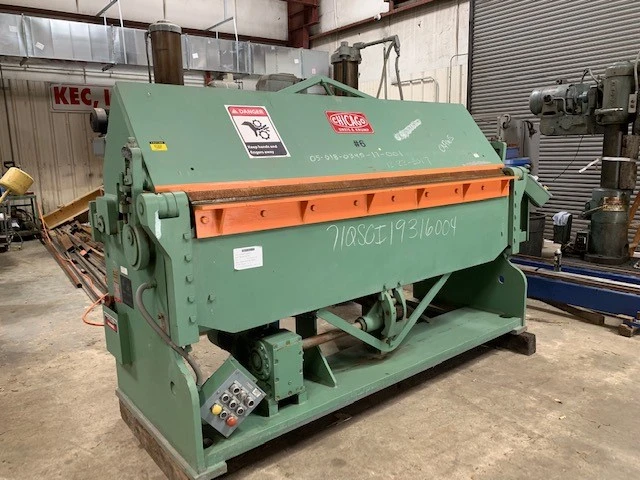

CHICAGO 8' X 3/16" POWERED STRAIGHT BRAKE
FEATURES on every Power Leaf Brake:Model Bending Length Capacity Min flange on capacity Motor HP Shipping Weight Length Max Width Max Height Table height
PB-8135 96" 10 Ga 1" 3 5500 lbs 9'8" 8' 6'1" 3'11"
PB-8187 96" 3/16 1 1/2" 5 6550 lbs 9'8" 8' 6'1" 3'11"
PB-8250 96" 1/4" 2" 7 1/2 9625 lbs 10' 8'6" 6'4" 3'10"
PB-10135 120" 10 Ga 1" 5 8140 lbs 11'8" 8' 6'1" 3'11"
PB-10187 120" 3/16 1 1/2" 6 1/4 11135 lbs 12' 8'6" 6'4" 3'10"
PB-8375 96" 3/8" 2 1/2" 7 1/2 13500 lbs 11'8" 10' 7'5" 4'2"
PB-8500 96" 1/2" 4" 10 20000 lbs 11'8" 10'10" 7'10" 4'3"
PB-10250 120" 1/4" 2" 7 1/2 15800 lbs 13'8" 10'6" 7'5" 4'2"
PB-10375 120" 3/8" 2 1/2" 10 20800 lbs 13'10" 10'6" 7'6" 4'3"
PB-10500 120" 1/2" 4" 15 24000 lbs 13'10" 10'6" 7'6" 4'3"
Power Unit – Powerful, cool running direct drive gear head motor is equipped with built in magnetic brake.
Drive System – Self aligning main shaft bearings assure smooth power transmission. Rack and pinion gear transfer power to bending leaf.
Power Clamping – Dual air cylinders actuate eccentric clamping links to secure piece part for accurate bending.
Power Top Adjustments – Motor adjusts top leaf accurately to thickness of work piece for correct bending radius.
Bend Stops – Micro limit switch controls bending leaf travel for repeatable angle bends on the finished work.
Operator Controls – Dual operator stations placed at sides of unit for clear view of the work area.
