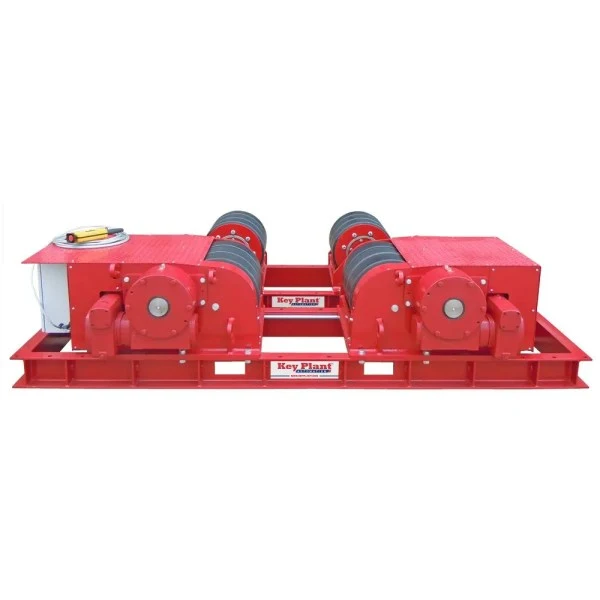

100 TON TANK TURNING ROLL SET (1 DRIVE & 1 IDLER PER SET)

Description

Model KP100 Conventional Rotator Set (Drive & Idler)
Safe Working Load – Drive Unit 50 tonne
Safe Working Load – Idler Unit 50 tonne
Maximum Load Carrying Capacity – Set 100 tonne (1 Driver & 1 Idler)
Rotation Capacity, Drive Unit 150 tonne
Wheel Centre Distance 27.5, 43.3, 59, 74.8, 90.6, 106.3, 122in (700, 1100, 1500, 1900, 2300, 2700, 3100mm)
Vessel Diameter Capacity 22.4in to 267.7in (570mm to 6800mm)
Rotation Speed Range 5.1 to 51.1 in/min (130 to 1300 mm/min)
Tyre Type Polyurethane, 95A durometer shore rating
Wheel Size 20.5in diameter x 21in wide (521mm x 533mm)
Overall Height to Top of Tyre 30.1in (765mm)
Remote Pendant Type Plug & Socket Five Push Button Control (forward/stop/reverse/speed control/e-stop), 50ft (15m) cable
Rotation Drive Motors 2 x 2.2kW
Primary Input Power 380 to 480V, 3 Phase, 50/60Hz
Input Current at Rated Load 15.2amp
Overall Length & Width – Drive 140.5in x 44in (3570mm x 1120mm)
Overall Length & Width – Idler 140.5in x 35.4in (3570mm x 900mm)
Weight – Drive 6173lb (2800kg)
Weight – Idler 3527lb (1600kg)
