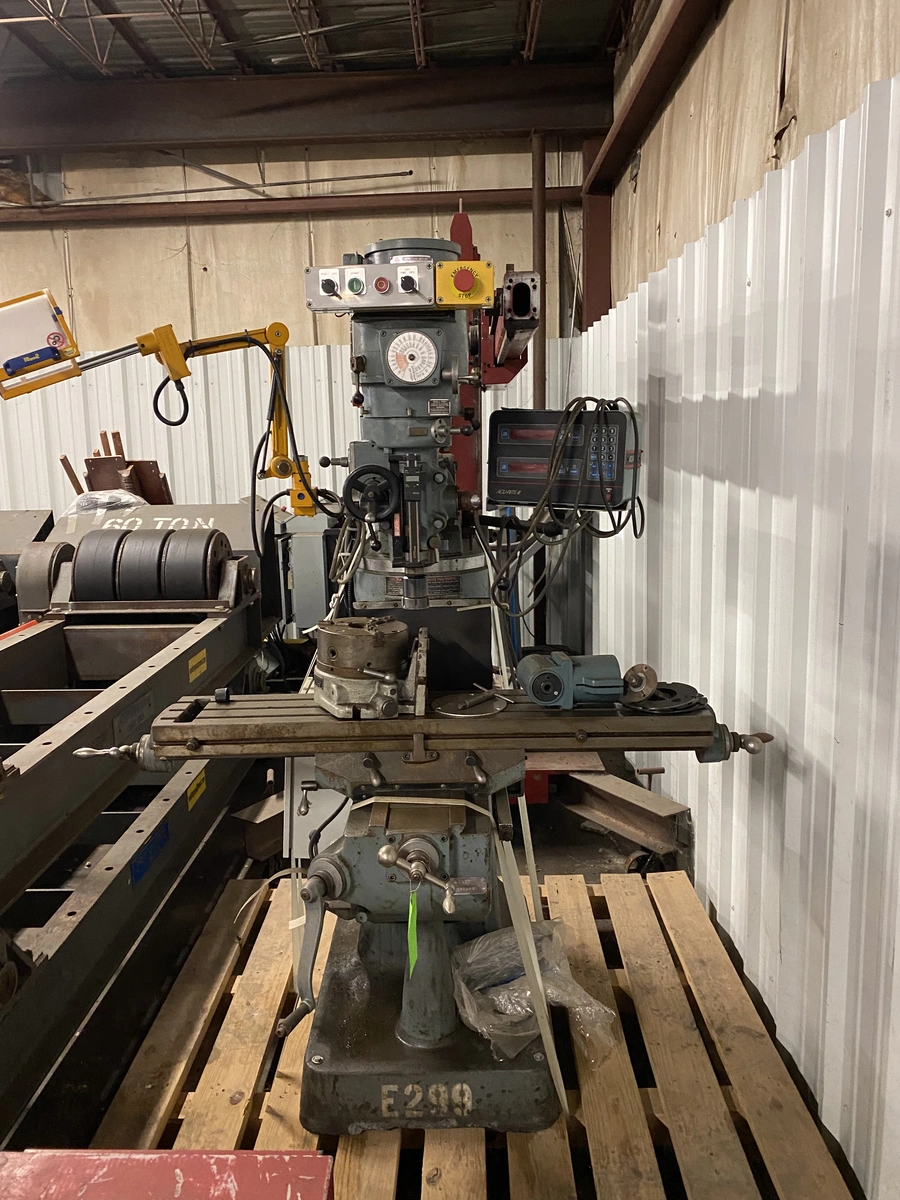

42" x 9" ALLIANT RT2 VERTICAL MILLING MACHINE

Description

Work Table:
Surface Area: 42″ x 9″
T-Slot Center Distance: 3 @ 2.5″ centers
T-Slot Sizes: 0.625″
Maximum Weight of Workpiece: 750 lbs.

Travels:
X-Axis Table Travel: 30″ (26″ with power feed)
Y-Axis Table Travel: 12″
Z-Axis Table Travel (knee): 16″
Quill Travel: 5″
Ram Travel: 12″

Spindle:
Spindle Taper: R8
Spindle Diameter: 1.875″
Quill Diameter: 3.375″
Distance Spindle to Table (minimum / maximum): 2-1/2″ to 18-1/4″
Distance Spindle to Column (minimum / maximum): 6-3/4″ to 18-3/4″
Speeds: 60 to 4,500 RPM
Power Quill Feed: 0.0015″/rev, 0.003″/rev & 0.006″/rev
Motor: 3 Horsepower, 220 / 440 Volt, 1,720 RPM, 8 / 4 Amps, 60 Hz

Head Adjustments:
Head Swivel: 360 degrees
Head Cant: 45 degrees
Head Tilt: 90 degrees

General:
Electrical: 220 / 440 Volt, Three Phase
Overall Dimensions: 58″ x 64″ x 84″ tall
