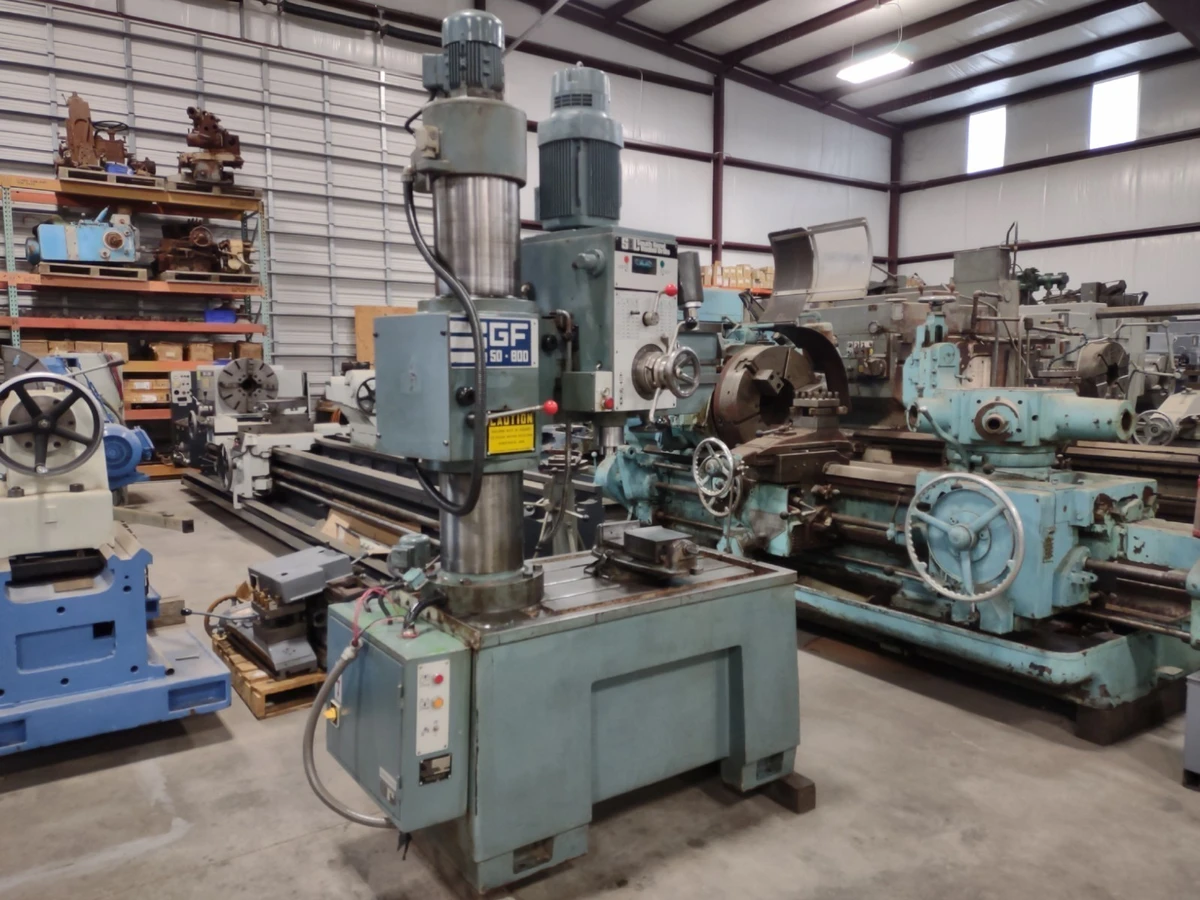

2' X 7" X 10" SOUTHBEND/FORADIA GF 500 800 RADIAL DRILL

Description

2' 7" x 10" SOUTH BEND / FORADIA GF-50-800 RADIAL DRILL
MANUFACTURER - SOUTH BEND / FORADIA
ARM LENGTH - 2' 7"
DRILLING CAPACITY, MILD STEEL - 2"
DRILLING CAPACITY, CAST IRON - 2 3/8"
TAPPING CAPACITY, MILD STEEL - 1 9/16"
TAPPING CAPACITY, CAST IRON - 2"
COLUMN DIAMETER - 10"
MIN / MAX DISTANCE, SPINDLE TO BASE - 3 7/16" - 27 7/16"
WORKING SURFACE OF BASE, WIDTH X LENGTH - 25" X 33"
SPINDLE TAPER - #4 MORSE
SPINDLE STROKE - 9 "
TRAVERSE OF ARM ON COLUMN - 21 "
TRAVERSE OF HEAD ON ARM - 21 _"
DRILLS TO CENTR OF CIRCLE, MIN/MAX - 14.75" - 36.5"
SPINDLE SPEEDS (9) - 40 - 1,750 RPM
BASE DIMENSIONS - 25" W X 47" L X 90" H
APPROXIMATE WEIGHT - 4,000 LBS.
