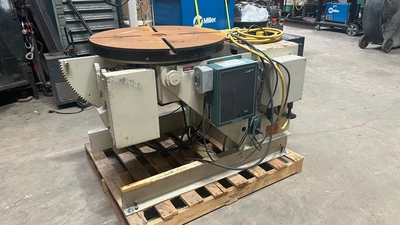

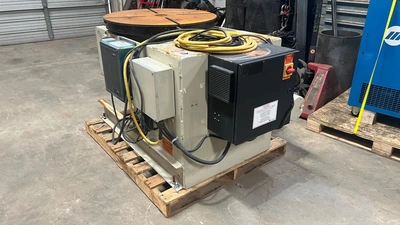

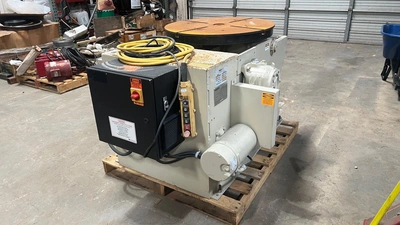

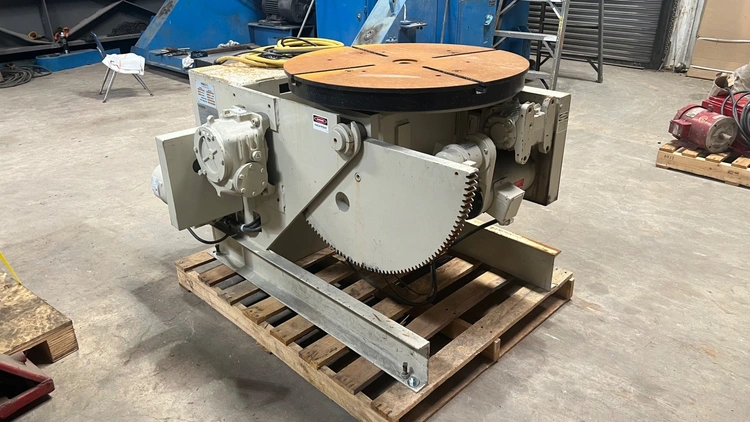

3,000 LB PANDJIRIS WELDING POSITIONER W/ 30" ROUND TABLE

Description

Load capacity ........................... 3,000 lb. 6-inch overhung from face of table, 6-inch eccentricity
Rotational motor size ................ 1 H.P. motor
Rotation speed ......................... Variable from .046 to 1.40 RPM
Rotation torque (Rt) .................. 18,000 Inch-pounds
Swing radius ............................. 28" @ 90° tilt
Tilt range .................................. 0 through 135 degrees, motorized
Tilt motor size ........................... 3/4 H.P. AC Brakemotor
Tilt Speed ................................. 135 degrees in 36 seconds
Tilt torque (Tt) ........................... 35,250-inch pounds inherent
