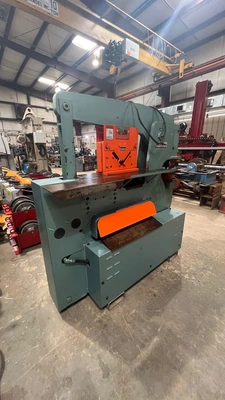

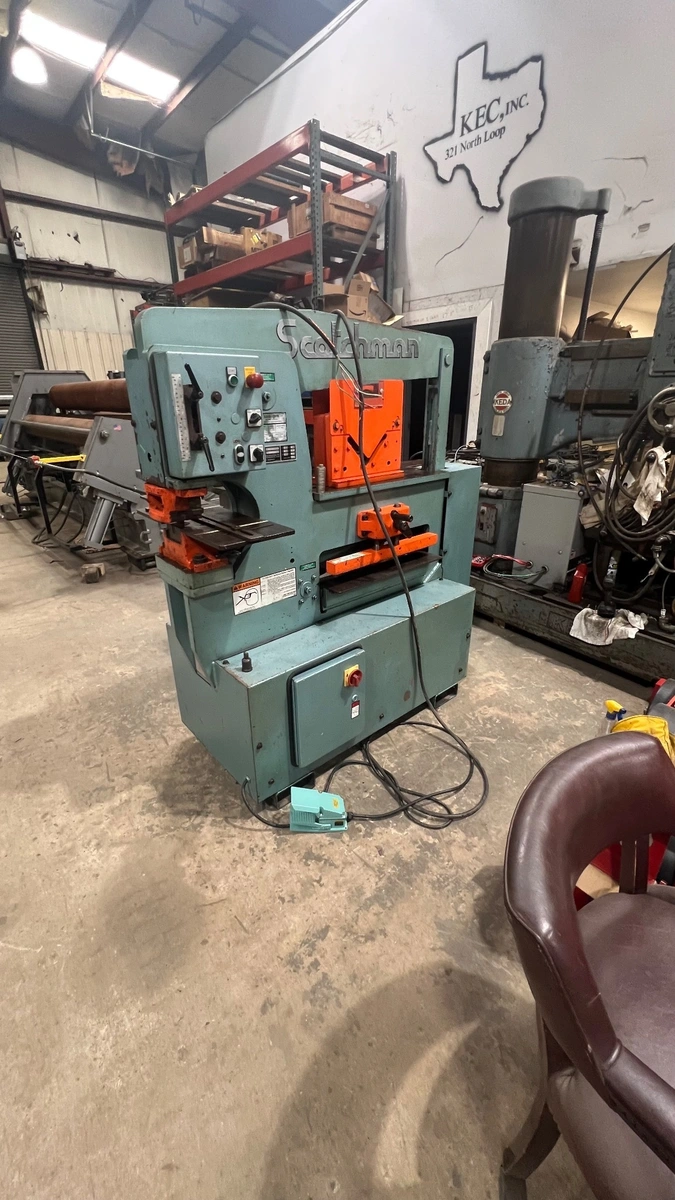

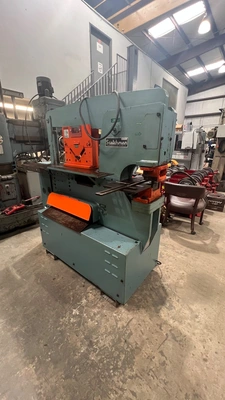

Very nice, used ironworker!
Punching Capacity 65 ton
1-1/16" in 3/4" 58 mt
27 mm in 19 mm
Special Tooling 4" Max. Dia. 102 mm Max. Dia.
Throat Depth 9" 229 mm
Flat Bar Shear 24" Length
1" x 6"
3/4" x 10"
1/2" x 12"
3/8" x 16"
1/4" x 24" 610 mm
25 x 152 mm
19 x 254 mm
12 x 305 mm
10 x 406 mm
6 x 610 mm
Saber Blade (optional) 1" x 6"
1/2" x 16" 25 x 152 mm
12 x 406 mm
Angle Shear 90 degree 6" x 6" x 3/8"
5" x 5" x 1/2" 152 x 152 x 10 mm
127 x 127 x 12 mm
Angle Shear 45 degree
w/Tool
w/Bar Shear
3" x 3" x 3/8"
4" x 4" x 1/2"
76 x 76 x 10 mm
102 x 102 x 12 mm
Brake 12" 40 ton 36 mt
Brake 24" 30 ton 27 mt
Open End Brake Max. 1/4" x 5"
[Flat or Angle Iron] 6 x 127 mm
Pipe Notcher
Schedule 40 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher 2" x 2-1/2" x 3/8" 51 x 63 x 10 mm
90 degree V-Notcher 6" x 6" x 5/16" 152 x 152 x 8 mm
Channel Shear 2" to 5" adj. 51 to 127 mm adj.
Unistrut Shear Samples Required
Rod Shear
Round (max.)
Square (max.)
9 Cavity - 1/4" to 1-1/4"
1 Cavity - 1/4" to 1"
6 to 32 mm
6 to 25 mm
Square Tube Shear 1/2" to 2"
12 gauge 12 to 51 mm
0.105" / 2.7 mm
Picket Tool 1/2", 3/4" & 1"
16 gauge 12 , 19 , & 25 mm
0.06" / 1.5 mm
Weld Coupon Bender (max.) 2" wide x 3/8" 51 x 10 mm
Offset Die Holder Max. 40 ton Max. 36 mt
Strokes per Minute in Light Material 58 spm [Punch Station] 1/4" Stroke
Strokes per Minute in Heavy Material 26 spm [Punch Station] 3/4" Stroke
Hydraulics 2,600 psi 183 bar
Motor Standard 5 hp
208/230/460, 380/575v; 3 ph 3.73 kW
Motor Optional 5 hp
220v, 1ph 3.73 kW
Dimensions L: 60-3/4"
W: 30"
H: 64-1/2" L: 154.5 cm
W: 76 cm
H: 164 cm
Shipping Weight (may vary) 2,984 lbs. 1,354 kg
