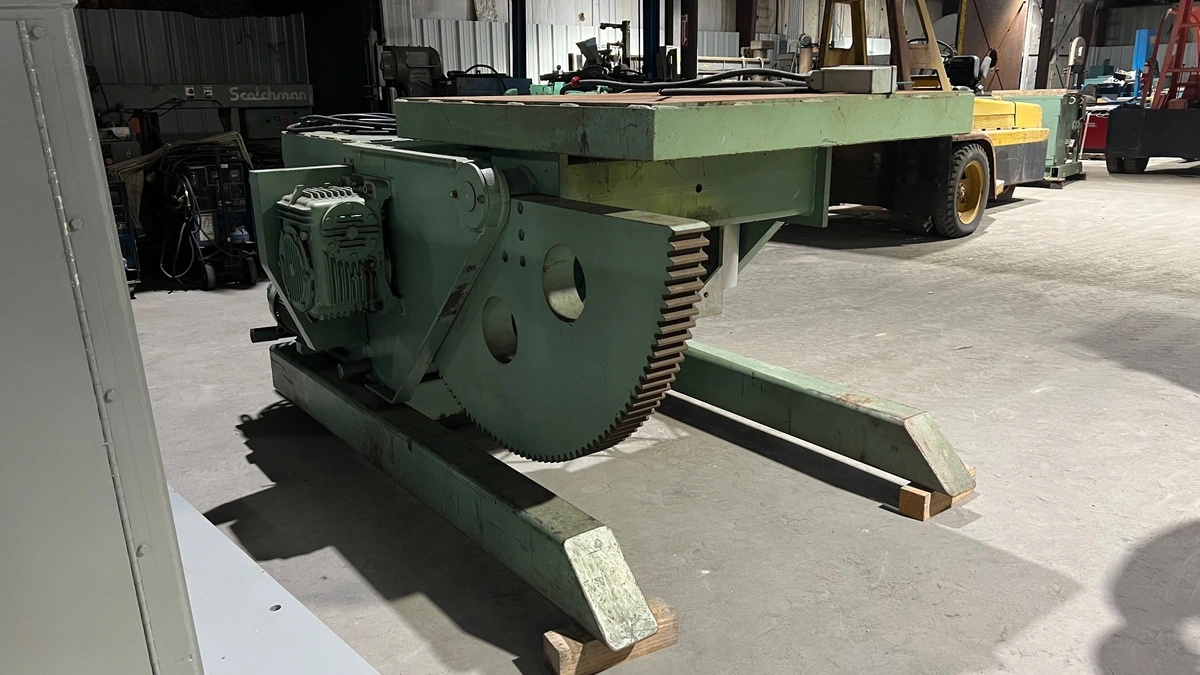

The Model 120-12 MVRMTAB Positioner has a motorized variable speed rotation with ForwardStop-Reverse switch and dynamic braking. The rotation speed is variable from 0.02 to 0.73 RPM with motorized tilt infinitely variable through 135 degrees. A 54" square table with adjustable height to allow full tilting capability is standard. Six positions with pinned hole locations. All wiring conforms to National Electrical Code Standards. The positioner operates on 460-volt, three phase, 60 cycle input power, 15 amps (230V, 30 amps, available upon request). When ordering specify 230 or 460 volts. A field changeable plug-in hand pendant includes "Forward-Stop-Reverse-Weld/Rapid-E-Stop" buttons and a speed adjustment potentiometer on 25' of cable as standard. Tilt Up/Down Pushbuttons located on the side of the main electrical enclosure. Control voltage is 24 VAC. Equipment is high frequency protected.
The Model 120-12 MVRMTAB Positioner has a motorized variable speed rotation with ForwardStop-Reverse switch and dynamic braking. The rotation speed is variable from 0.02 to 0.73 RPM with motorized tilt infinitely variable through 135 degrees. A 54" square table with adjustable height to allow full tilting capability is standard. Six positions with pinned hole locations. All wiring conforms to National Electrical Code Standards. The positioner operates on 460-volt, three phase, 60 cycle input power, 15 amps (230V, 30 amps, available upon request). When ordering specify 230 or 460 volts. A field changeable plug-in hand pendant includes "Forward-Stop-Reverse-Weld/Rapid-E-Stop" buttons and a speed adjustment potentiometer on 25' of cable as standard. Tilt Up/Down Pushbuttons located on the side of the main electrical enclosure. Control voltage is 24 VAC. Equipment is high frequency protected.
Load capacity ........................... 12,000 lb. 12-inch overhung from face of table, 12-inch eccentricity. Rotational motor size ............... 5 H.P. motor.
Rotation speed ......................... Variable from 0.02 to 0.73 RPM.
Rotation torque (Rt) .................. 144,000-inch pounds.
Swing radius ............................ 47" to 74" @ 90° tilt
Tilt range .................................. 0 through 135 degrees, motorized.
Tilt motor size .......................... 5 H.P. AC Brakemotor.
Tilt Speed................................. 135 degrees in 45 seconds.
Tilt Torque (Tt) ......................... 250,000-inch pounds inherent.
