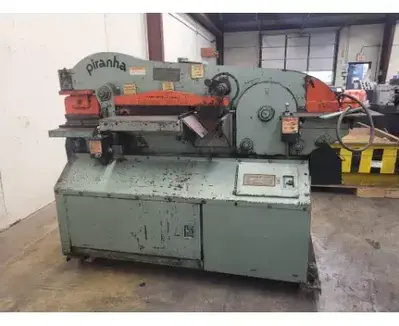

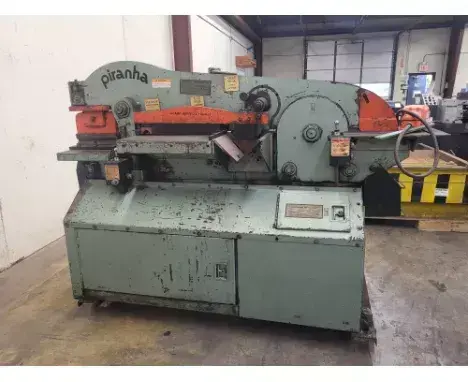

VERY NICE PIRANHA 90 TON IRONWORKER **ON THE WAY IN TO OUR SHOP**
Have one to sell?
ConditionUsed
1 available
The P-90 features six built-in workstations:
• Punch Station with a dovetail slide for quick switches to bending attachments
• Flat Bar Shear (up to 18 inches wide)
• Angle Iron Shear
• Round Bar Shear
• Bending Station
• Integrated Coper/Notcher
Key Features
• No slug-loss shearing: Saves material, reduces mess, and handles larger material capacities.
• Electrical controls: Includes a remote electric foot switch and limit switch stroke controls.
• Automatic hold-downs: Keeps material secure and prevents twisting during cuts.
• Tonnage Capacity: 90 tons (punching and bending)
• Motor: 10 HP (available in 230/460V 3-phase or single-phase options)
• Punch Station: 10-inch throat depth; capable of punching a 1-1/8 inch hole through 1-inch thick plate
• Net Weight: Approximately 4,250 lbs
• Dimensions: 31 inches wide x 79 inches long x 64 inches high
• Hydraulic Tank: 25-gallon capacity (AW-32 oil)
The P-90 features six built-in workstations:
• Punch Station with a dovetail slide for quick switches to bending attachments
• Flat Bar Shear (up to 18 inches wide)
• Angle Iron Shear
• Round Bar Shear
• Bending Station
• Integrated Coper/Notcher
Key Features
• No slug-loss shearing: Saves material, reduces mess, and handles larger material capacities.
• Electrical controls: Includes a remote electric foot switch and limit switch stroke controls.
• Automatic hold-downs: Keeps material secure and prevents twisting during cuts.
Imperial
| Tonnage | 90 T |
| Angle (L1) | 5" |
| Angle (L2) | 5" |
| Angle (T) | 0.5" |
| Power | 10 hp |
| Throat | 10" |
| Stroke | 4.875" |
| Dimensions | 35 x 90 x 66.5 |
| Weight | 4250 |
• Tonnage Capacity: 90 tons (punching and bending)
• Motor: 10 HP (available in 230/460V 3-phase or single-phase options)
• Punch Station: 10-inch throat depth; capable of punching a 1-1/8 inch hole through 1-inch thick plate
• Net Weight: Approximately 4,250 lbs
• Dimensions: 31 inches wide x 79 inches long x 64 inches high
• Hydraulic Tank: 25-gallon capacity (AW-32 oil)
